Description
Product Description
Additional Devices
Wall clamping track
Double clamp-fastened profiles in anodised extruded aluminium,
fixed to the filter-holder grid by hammerhead screws.
Ceiling light
Ceiling light with aerodynamic profile specially designed for
use in controlled contamination environments.
Teardrop light
Teardrop light with aerodynamic profile specially designed for
use in controlled contamination environments.
Slot closure profile
Anodised aluminium profile for closure of the slot of the profile: click-in insertion.
Blank Panels
Wall clamping track
Applications
Cleanrooms for the Pharmaceutical, Hospital, Food and Beverage industries.
Components’ description

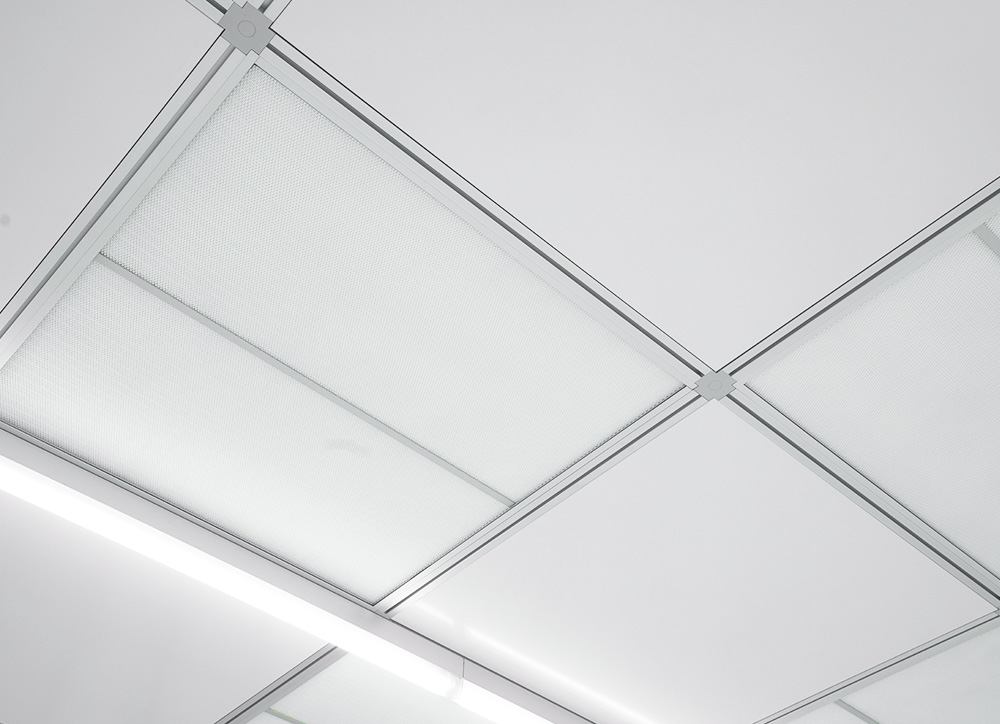

The profile
is made of extruded aluminium alloy. It has a reduced width (50 mm) which allows for a 2% increase of the filtering surface as against a profile with a 60 mm width;
Joints
in die cast zinc/aluminium alloy, painted in polyesterepoxy paint in aluminium grey colour. Cross joints are
designed to house sprinkler and other devices, which can also be installed at a later moment, after the fitting of the false ceiling: the cross joint / sprinkler head group, available as an option, has Factory Mutual approval. Additional appliances can be connected through the linear joints;
Blank panels
available in three options:
› Simple: made of white powder painted aluminium sheet, fixed to the profile by means of anodised aluminium devices;
› Walkable: sandwich, composed of pre-painted aluminium sheets and honeycomb panel in between;
› Flash Mounting: sandwich, composed of pre-painted aluminium sheets and honeycomb panel in between.
