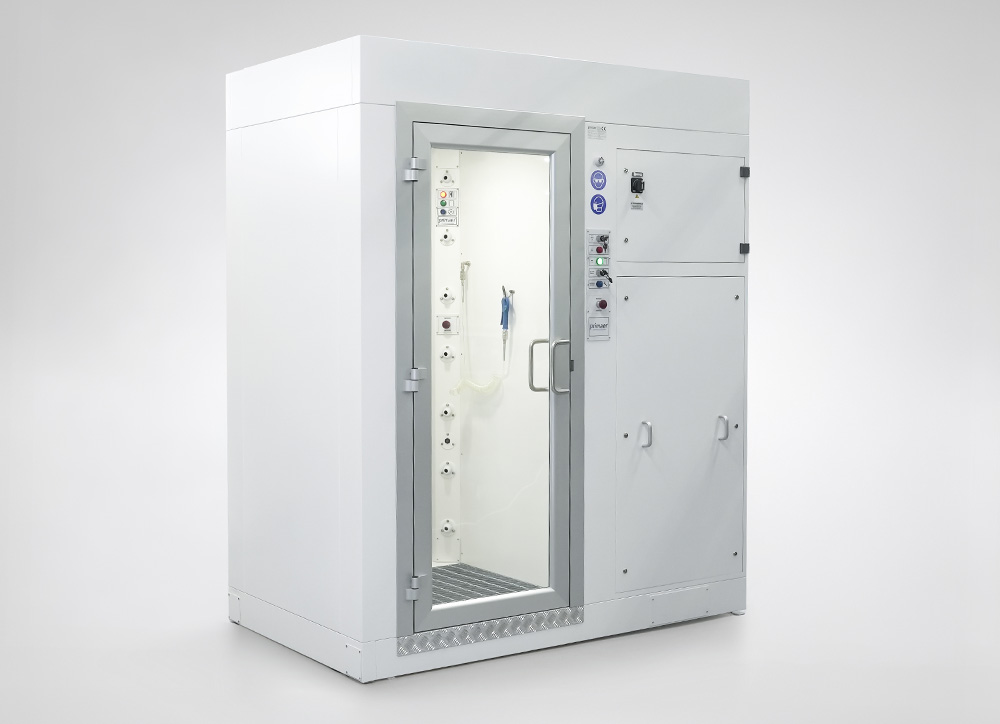

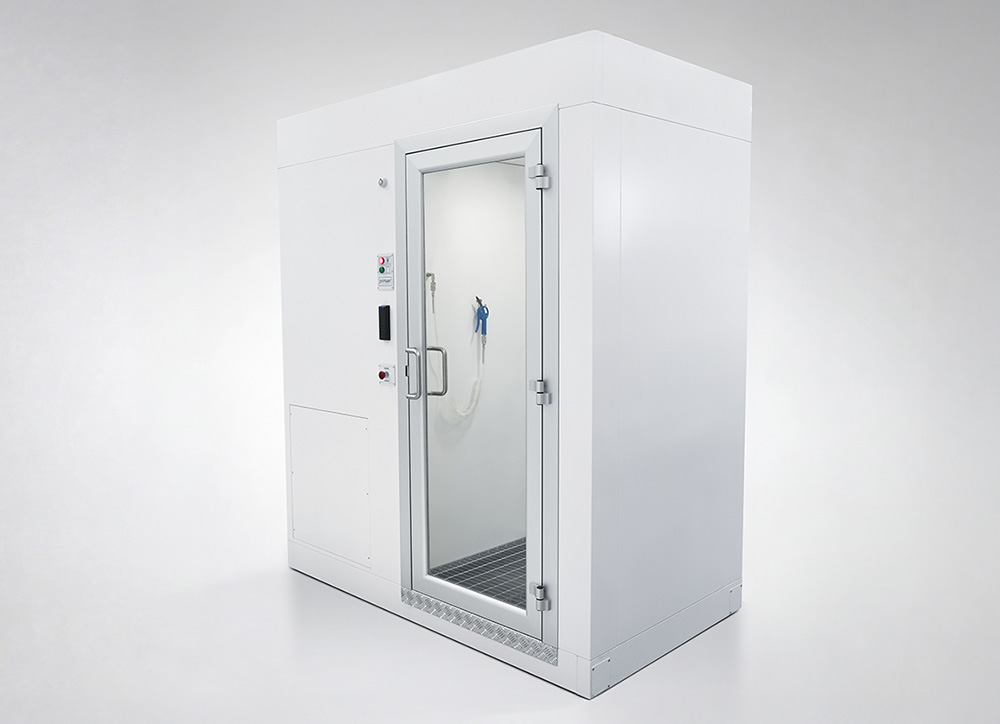

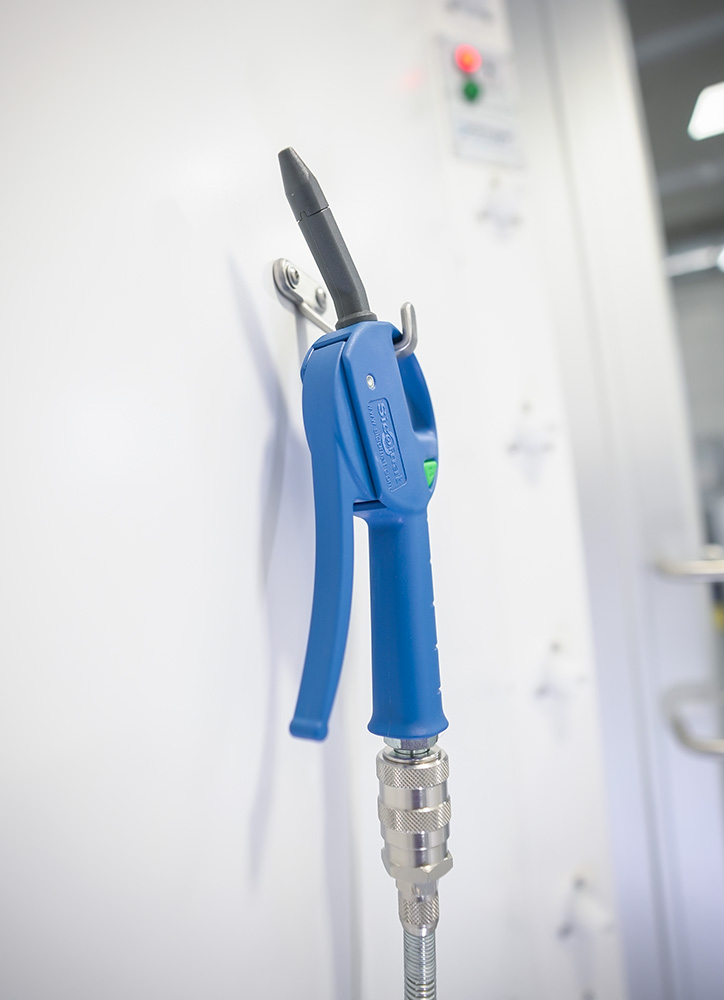

Air shower – Vortex

The VORTEX Air Shower is designed to remove residual particles from operators’ garments at the end of production activities, combining efficient decontamination with the ability to recover or safely dispose of the collected material.

APPLICATIONS
Precious metal recovery
In precious metal processing, VORTEX removes and recovers residual gold dust and other valuable particles from operators’ garments, reducing material losses and improving process efficiency.

Hazardous powder containment
In processes involving hazardous powders, VORTEX prevents operators from carrying contaminants outside the controlled environment, collecting residual particles for safe disposal and protecting both people and surrounding areas.

HOW IT WORKS
The unit generates high-velocity air cleaning cycles through EC centrifugal fans and directional nozzles positioned on the side walls and ceiling. The air stream effectively removes particles adhering to operators’ clothing and directs them towards the internal filtration and recovery system.
Unlike conventional air showers, VORTEX not only removes contaminants from garments but also enables their recovery or safe disposal through an integrated collection system equipped with a removable recovery drawer.
The machine functions are fully automatic and can be customised according to customer requirements.

Categories: ,
PRINT

Description

Play Video

KEY FEATURES

  • Painted steel made;
  • Fully automated system via PLC;
  • Nozzles on both sides and on ceiling;
  • ISO 5 cleaning class;
  • Flow rate of 25 m/s at nozzles;
  • EC technology fans;
  • Alarm for inaproppriate use included;
  • Recovery of gold and precious metal dust;
  • Hazardous powder containment;
  • Integrated removable dust recovery drawer;
  • Adjustable operating cycle parameters;
  • Interlocked safety doors;
  • Integrated filtration and recovery system;
  • Customisable configuration and finishes.

Applications

Precious metal refineries, jewellery manufacturing facilities, precious metal processing plants, recycling operations, high-value powder production environments and industrial areas where recovery of valuable dust particles is required. VORTEX is also suitable for pharmaceutical, chemical and industrial environments where hazardous powders must be safely contained and prevented from being carried outside the controlled area for proper disposal.

Components’ description

Construction

Consisting of four screwed together made of sturdy sheet steel box structures, painting RAL 9010, thickness 1.0-1.5 mm, constructed, assembled and reinforced to prevent mechanical resonance of the unit.

Base

Structural base complete with walking grids and integrated housing for the dust recovery system.

Radial electric fan

With an EC electric motor, coupled directly to an aluminium rotor with inverted blades.

Filtration and recovery system

Integrated filtration unit designed to retain and recover precious metal dust removed during the cleaning cycle.

Filter housing

Dedicated filter containment section designed to ensure efficient filtration and easy maintenance access.

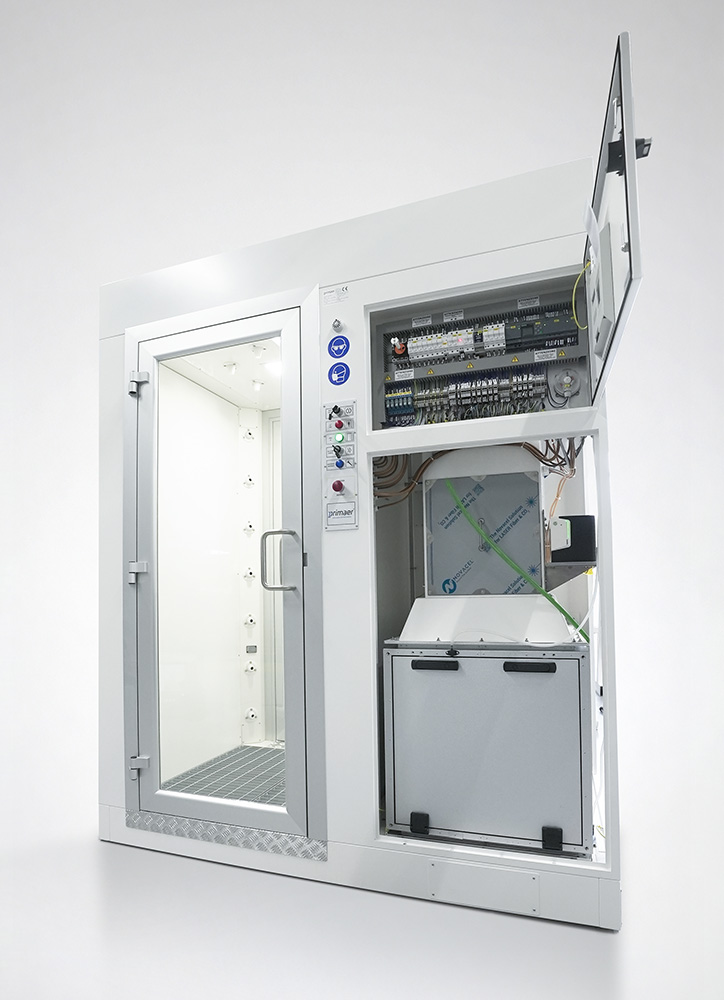

Dust recovery drawer

Removable collection drawer located in the lower section of the machine, designed for safe and easy recovery of valuable dust particles.

Absolute filter

With low pressure drop, H13 class, in accordance to EN1882:2009

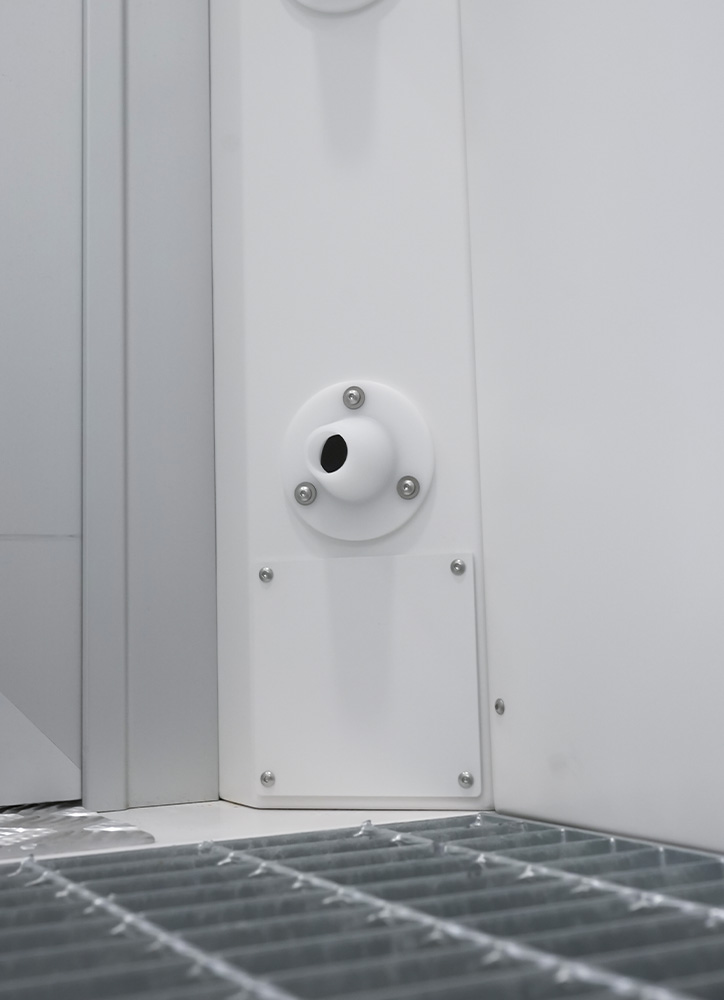

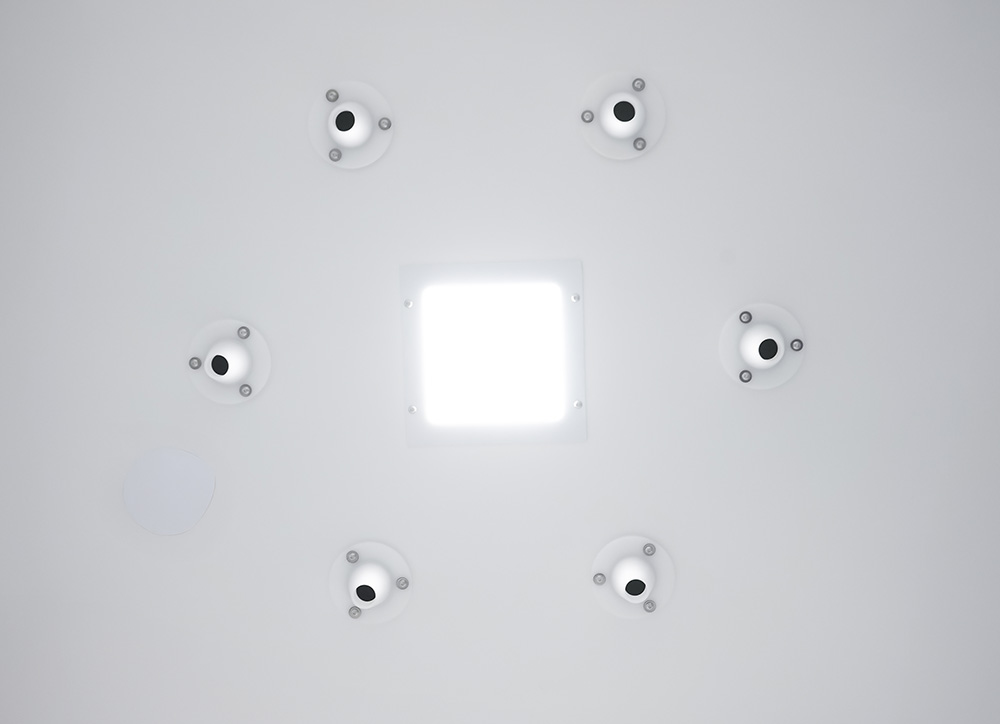

Nozzles

Adjustable aluminium or PVC, on request, with polyurethane gasket, located:

  • At the side: in columns;
  • On the upper part: in ceiling.

Doors

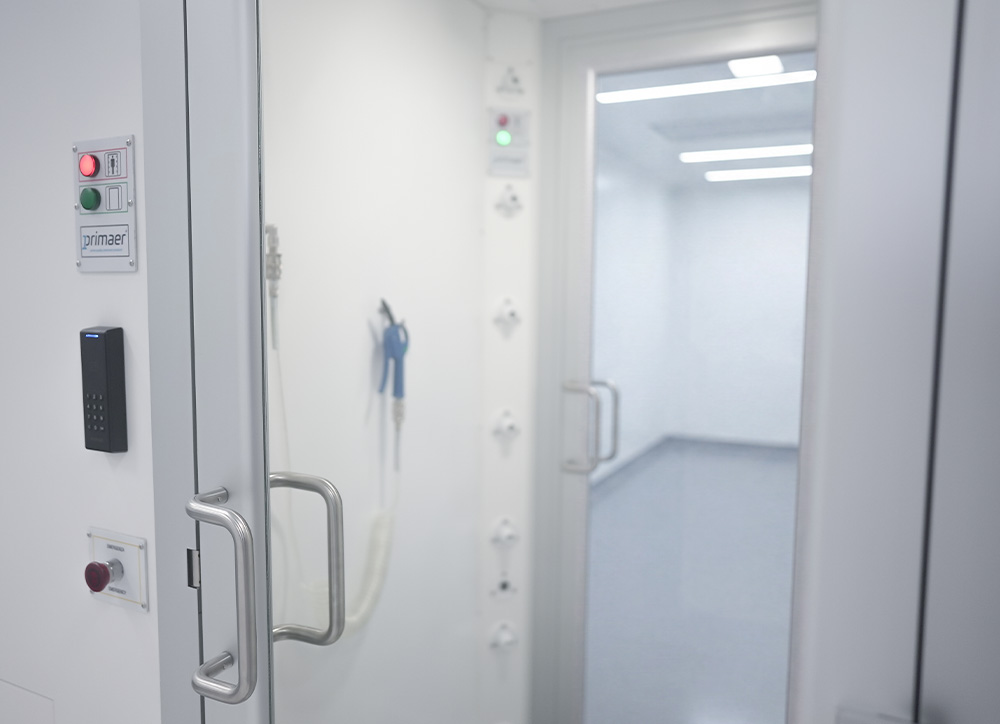

Made of a sturdy natural anodised aluminium frame with two VISARM 3+3 laminated safety glass panels and safety interlock system.

Lighting

Integrated LED lighting system installed in the ceiling of the Air Shower.

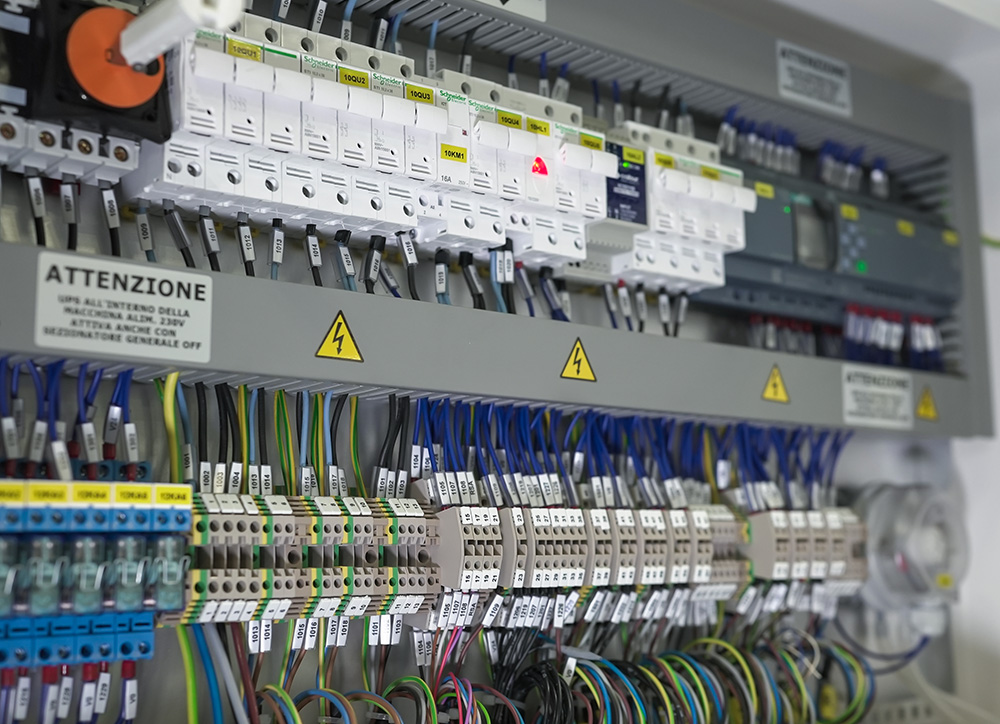

Electrical Panel

Incorporated in the Air Shower, it contains all the instruments necessary for commanding, controlling and protecting the Air Shower.

PLC

Dedicated PLC system managing machine logic, operating cycles, alarms and safety functions.

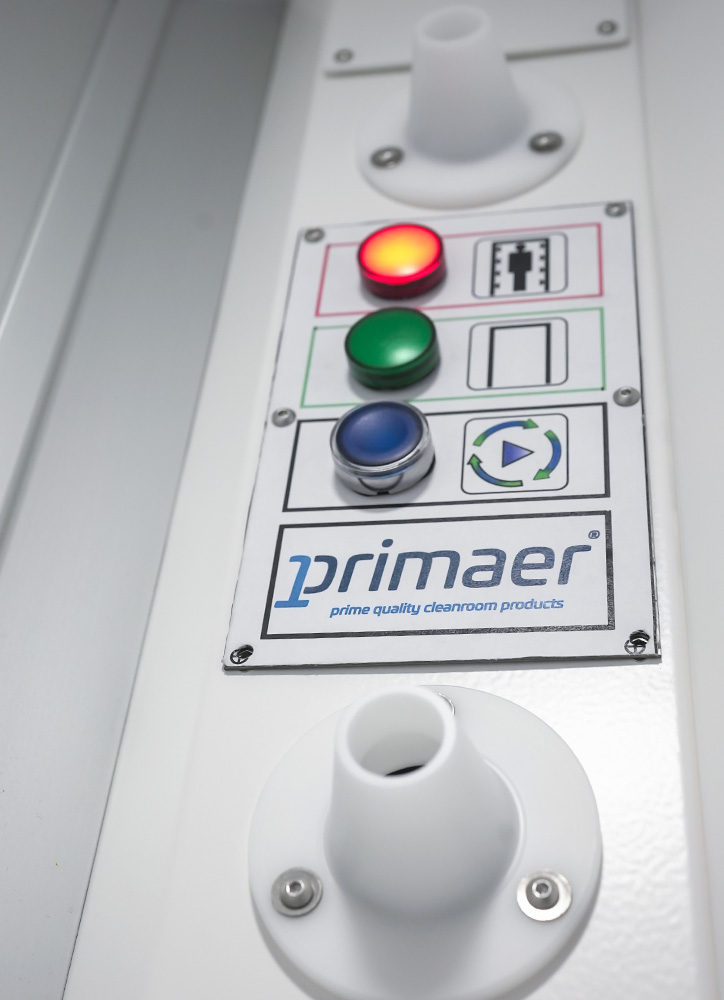

Signalling panels

Light panels installed near the entrance and exit doors for indicating the operating status of the Air Shower.

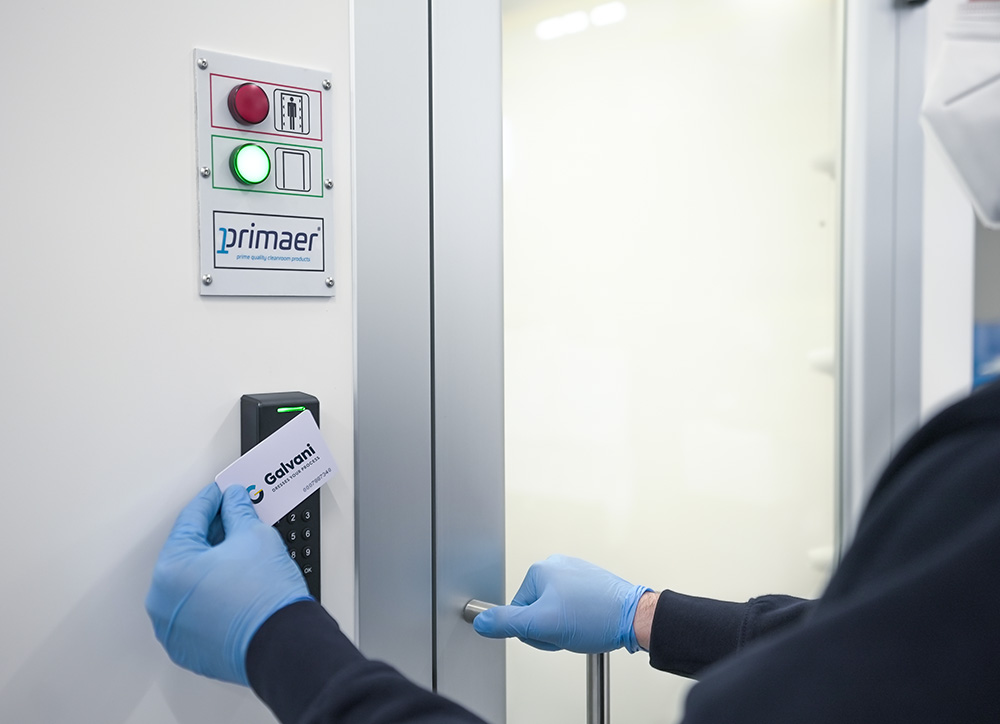

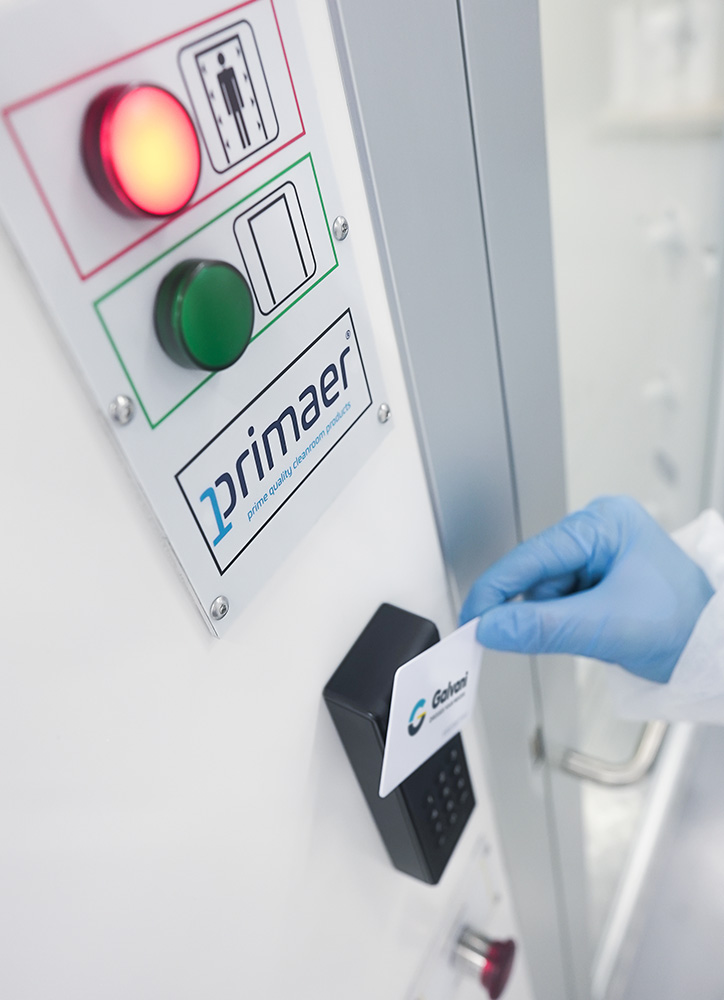

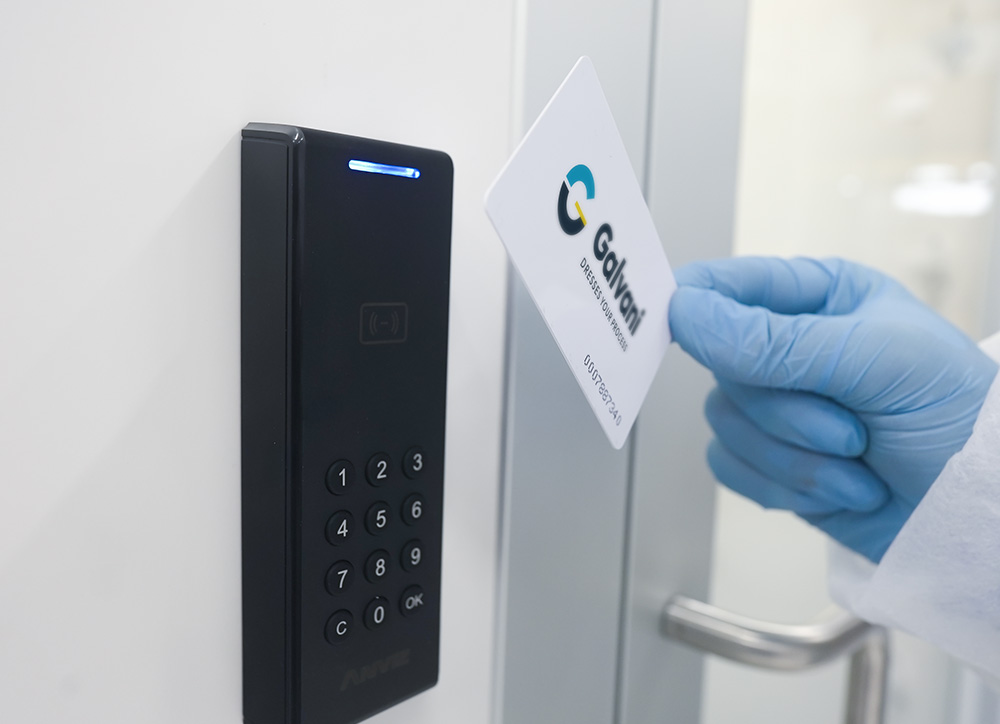

Operator interfaces

Internal and external command and signalling panels designed to support operator transit and system monitoring.

Alarm

Audible and visual alarm system activated in case of improper use, simultaneous door opening or interruption of the operating cycle.

Cleanliness class

ISO 5

Nozzle air speed

  • Operational: 25 m/s
  • At rest: 7 m/s

Noise level

  • Operational: < 65 dB(A)
  • At rest: < 55 dB(A)

Optional accessories

  • Electrolock: electromechanical interlock installed on the entrance and/or exit doors.
  • Door automations: electromechanical activators for hinged doors.
  • Stainless structural work: structure in AISI 304 stainless steel with SB finish.
