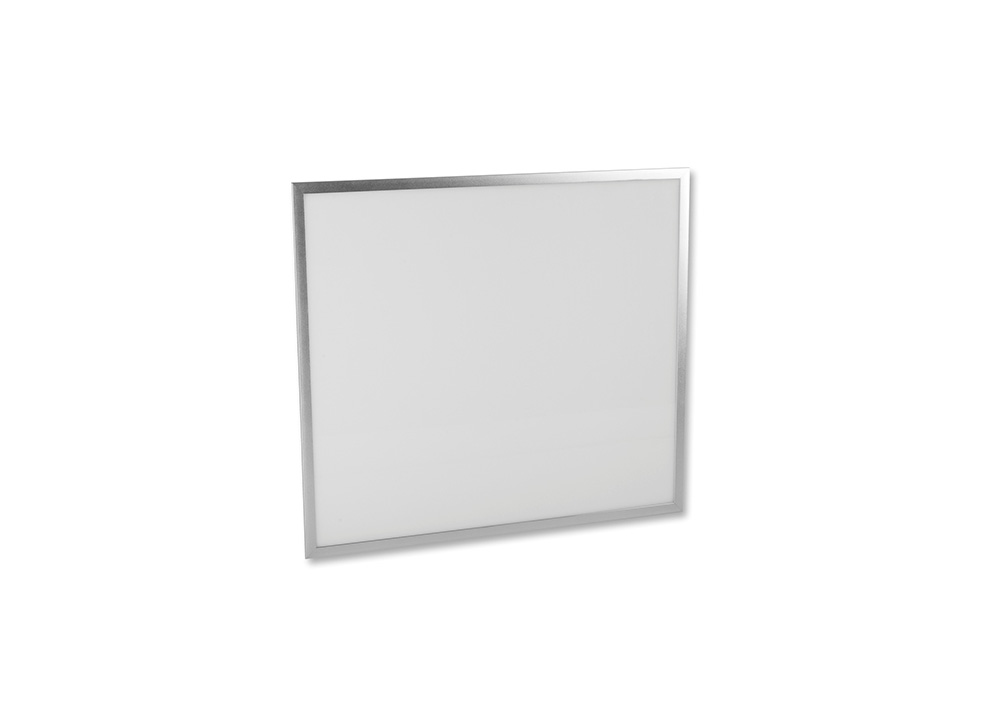

Aseptica – Flat

Ceiling fitting for flush installation for Clean Rooms: the ceiling fittings are constructed with dimensions compatible with those of the absolute filters to facilitate insertion into the grilled false ceilings of the Clean Rooms. Flat panel version.

Categories: ,
PRINT

Description

Product Description

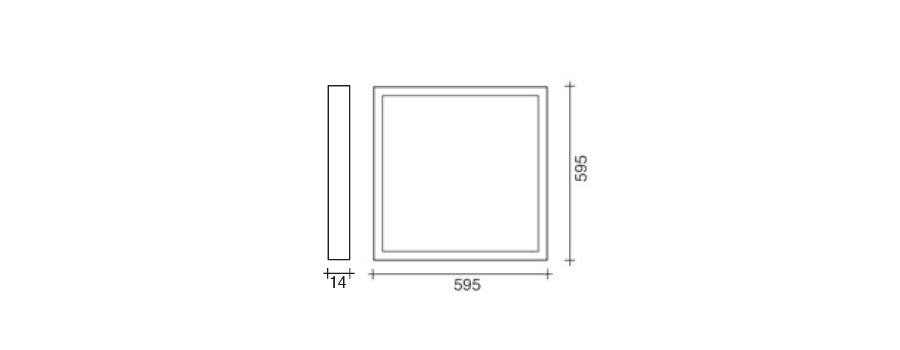

Dimensions

Applications

Cleanrooms for the Electronic, Optical, Mechanical, Aerospace, Pharmaceutical, Medical and Hospital industries.

Components’ description

  • Body: Aluminium + PMMA.
  • Electric wiring: In class I homologated, executed with ballast and components approved.
  • Diffuser: Optical room with policarbonate V2 plate.

Specifications

  • Power supply: 240 Vac – 50Hz
  • Wattage: 40W
  • IP 65 CEI Class I
  • CE
  • Luminous flux 2mt. (lx): 324 lx
  • Luminous flux (lm): 4000 lm ± 10%
  • Color temperature (K): NW 4000 ± 300 K
  • Color render index: > 80
  • Luminous efficiency (lm/W): 100 Lm/W ± 10%

Optional components

  • Emergency kit
  • Replacing power supply
